Description

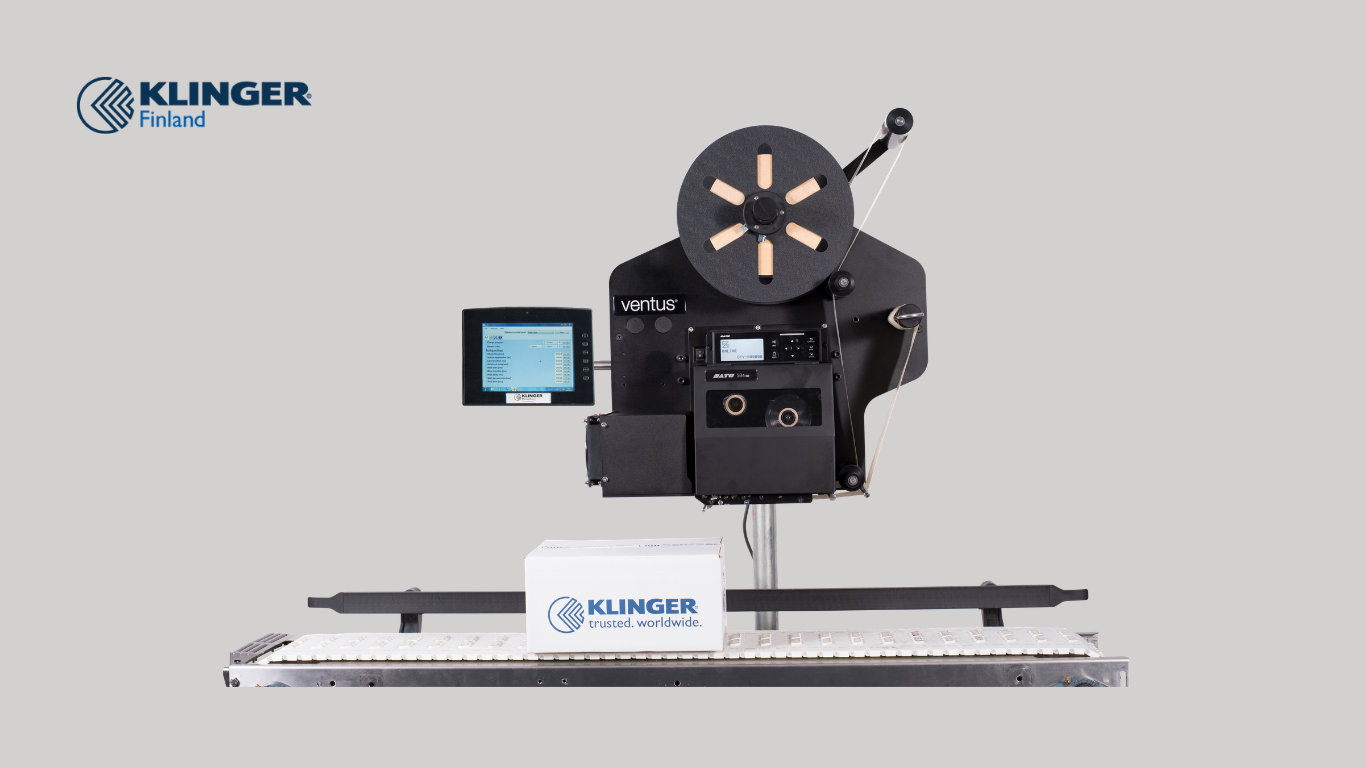

Ventus 520 is a blow applicator for real-time printing and applying. It is ideal for high-speed production lines where labelling must be executed extremely fast. In addition, blow application is suitable for products rugged in shape as well as such products that cannot or are not elected to be touched. The maximum labelling speed is 100 labels /minute (label size 25 x 30 mm). Ventus 520 is at its best when you print large numbers of the same label size.

Ventus 520 can apply a label on top or to the side of a product.



Technical specifications

• Label size: Width - 25~150mm; Length - 20~300 mm.
• Standard pad sizes: Fan: 74 x 105 mm (A7), 105 x 148 mm (A6), 148 x 210 mm (A5) Venturi: 80 x 40 mm, 74 x 105 mm, 100 x 100 mm.
• Speed: max. 60 labels/minute (label size 25x20mm).
• Compressed air: ~ 6 Bar.
• Printer options: All major printer brands available both thermal and thermal transfer such as Sato, Zebra and Datamax O‘Neil (200, 300 and 600 dpi).
• Dimensions: Height - 700 mm; Width - 500 mm; Depth - 350 mm (without printer).
• Weight: Frame - 26 kg; Printer - approximately 12 kg (depending on model).
