Description

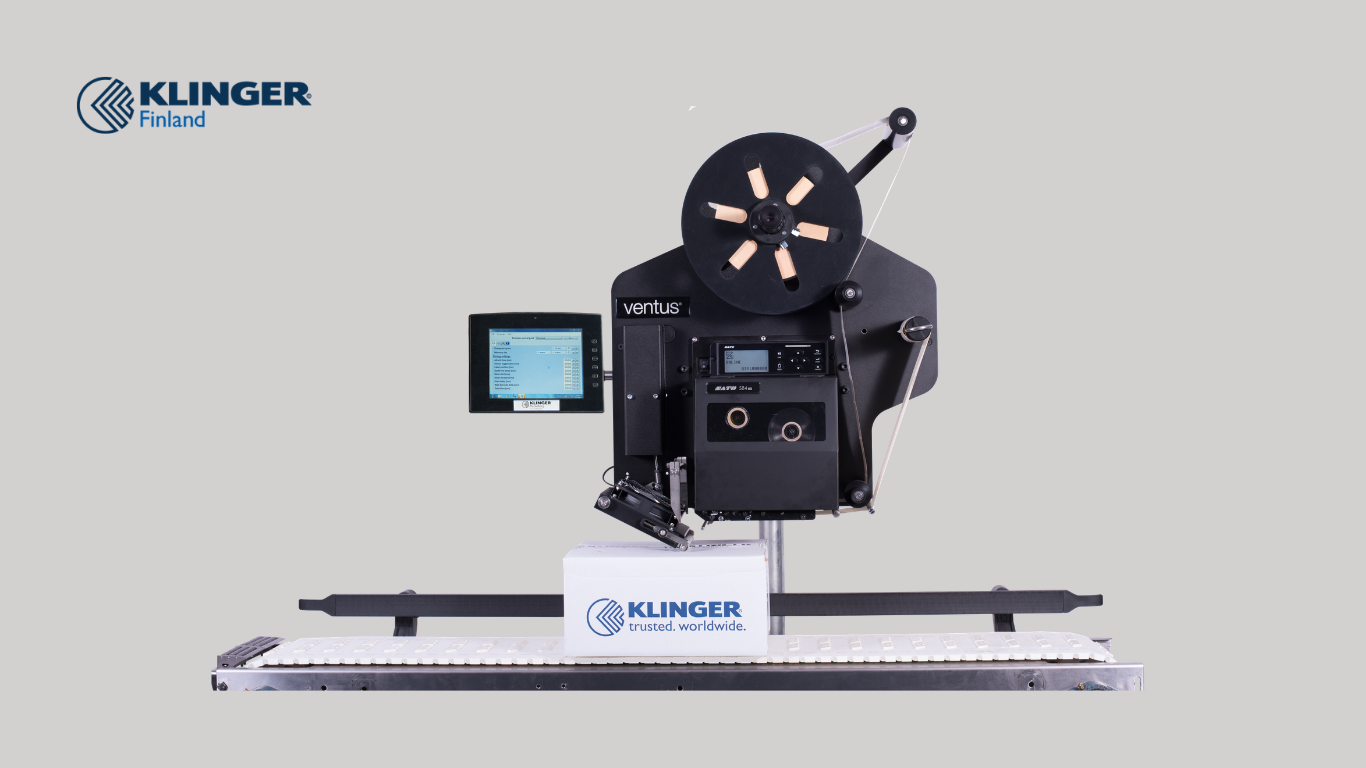

Ventus 920 applies the last-printed label to the moving product with a turning application head. It follows the surface of the product, which ensures that the label is carefully and thoroughly attached to the product. The structure of the application head is designed in such a way that the same head can be used to apply various-sized labels without any additional adjustments. Ventus 920 is the solution when the labelling has to be executed with speed and accuracy.

Ventus 920 can apply a label on top, to the side, infront or to the back of a product.



Technical specifications

• Label size: Width - 25~120mm; Length - 40~150 mm.
• Speed: max. 60 labels/minute (label size 25x40mm).
• Compressed air: ~ 6 Bar.
• Printer options: All major printer brands available both thermal and thermal transfer such as Sato, Zebra and Datamax O‘Neil (200, 300 and 600 dpi).
• Dimensions: Height - 700 mm; Width - 500 mm; Depth - 350 mm (without printer).
• Weight: Frame - 29 kg; Printer - approximately 12 kg (depending on model).
